Cable Surveillance Coaxial RG59 + Power 100 Meter RG59-100
Cable Surveillance Coaxial RG59 + Power 100 Meter RG59-100
Regular price
Rp 350.000,00 IDR
Regular price
Rp 500.000,00 IDR
Sale price
Rp 350.000,00 IDR
Unit price
per
Shipping calculated at checkout.

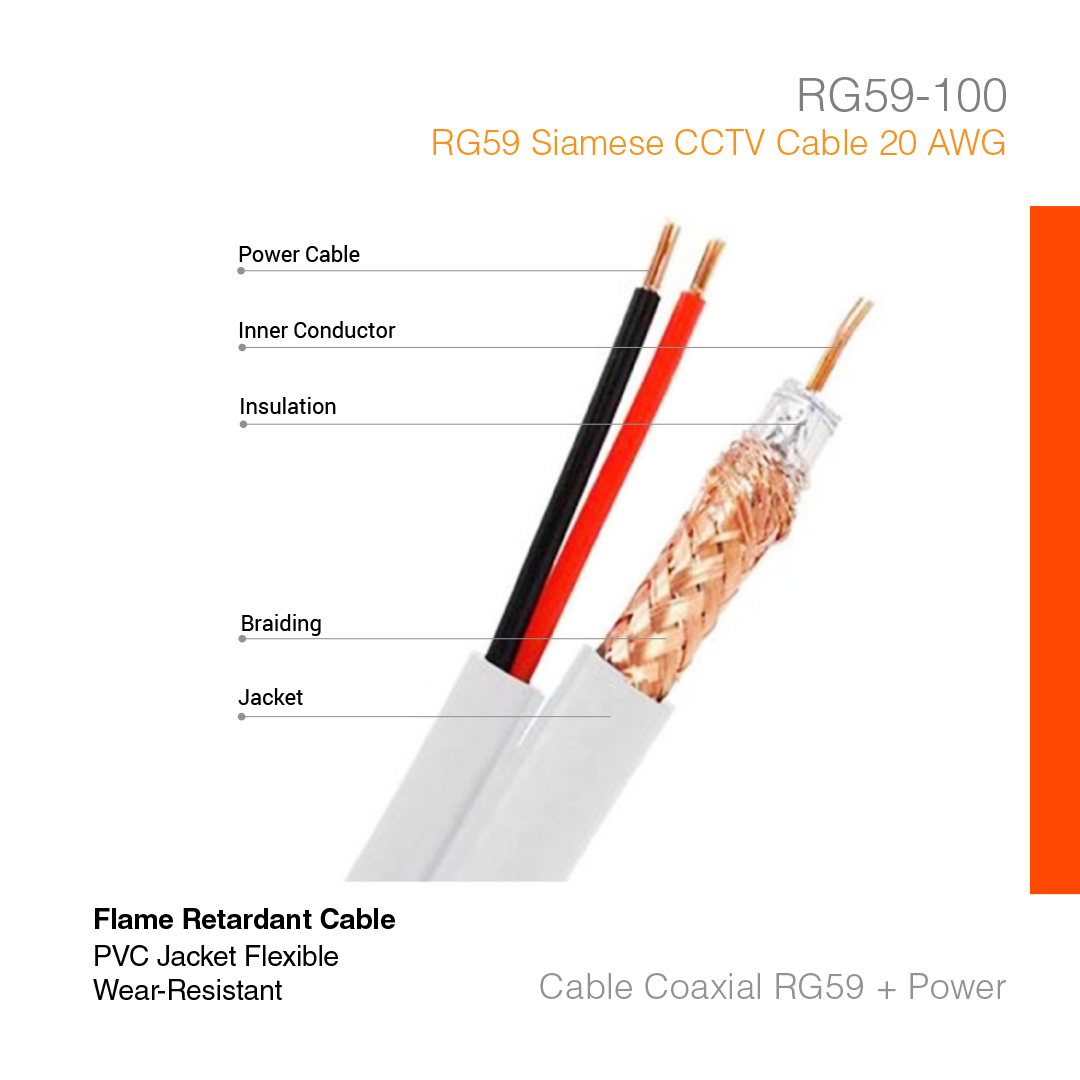

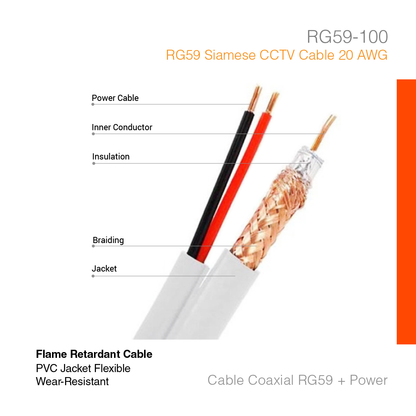

This 100-meter RG59 coaxial cable with integrated power lines is designed for professional surveillance installations. It ensures reliable video transmission and power delivery over long distances, simplifying setup and reducing cable clutter. Ideal for CCTV systems, it supports stable signal quality and efficient power supply to cameras, enhancing overall security system performance.
Product features
Product features
- Video Transmission: Supports high-quality analog video signals (typically used in CCTV cameras).
- Impedance: 75Ω (standard for video transmission).
- Conductor: Usually has a solid copper or copper-clad steel (CCS) center conductor.
- Power Delivery: Includes separate 2-core power wires (typically 18AWG or 20AWG) to supply DC power to cameras (e.g., 12V/24V for PTZ or IR cameras).
- CCTV Systems: Ideal for analog HD cameras (e.g., AHD, TVI, CVI).
- Simplified Installation: Only one cable needed for both video and power.
- Analog-Only: Not suitable for IP cameras (use Ethernet cable for PoE instead).
- Power Limitations: Long distances (100m) may cause voltage drop; a higher AWG (thicker wire) or power booster may be needed.
Best uses for
Best uses for
- Analog HD CCTV setups (TVI/AHD/CVI).
- Outdoor/indoor surveillance with centralized power supply.
- Compatible with: AHD (Analog High Definition), TVI (Transport Video Interface), CVI (Composite Video Interface), CVBS (Standard Analog CCTV)
- Large properties (warehouses, farms, parking lots)
- Perimeter security (fences, gates, industrial sites)
- For 12V/24V DC cameras, ensure proper wire gauge (18AWG recommended for 100m to minimize voltage drop).
- Retail stores, small offices, homes
- Retrofitting old analog systems (reusing existing BNC-based setups)
- IP-rated bullet/dome cameras (with IR night vision)
- Traffic monitoring, construction sites
What's in the box
What's in the box
- Cable Surveillance Coaxial RG59 + Power 100 Meter (1x)
